Constructed of aluminum and galvanized steel with a closed-cell foam core interior
Door component for the SHIELD WALL™ CORE containment system
Enhanced Sound Attenuation
No egress increases safety on any construction site

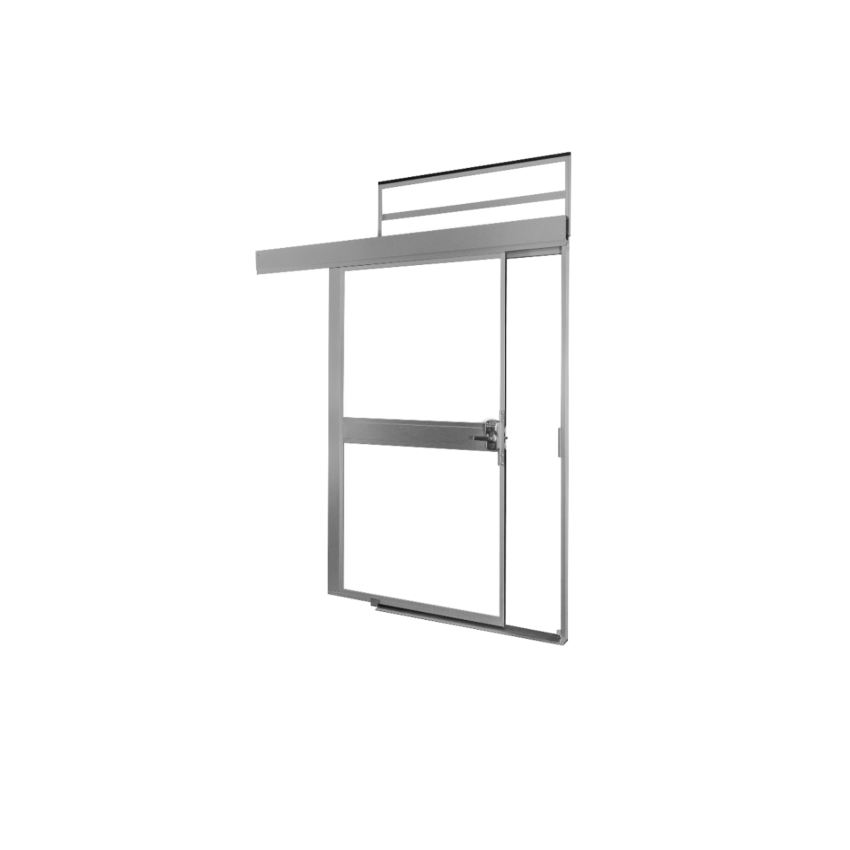

SHIELD WALL™ CORE Sliding Doors are available in 2 widths: 42" wide set in a 48" panel or 54" wide set in a 60" panel. Sliding doors are height adjustable up to 10'3" with the included over-the-door filler panel kit. The door features a gravity-driven self-closing mechanism and a magnet stop that may be removed. Sliding doors also include an electronic digital keypad handle. A 36" or 48" CORE panel must be installed to the left of the sliding door for track clearance.
Surface Burn Characteristics: SHIELD WALL™ CORE panels exceed ASTM E84
In 3rd party test results, SHIELD WALL™ CORE PANELS reduced the noise level of an air compressor operating at 90dB at a distance of 8ft from the wall by 20dB
| Frame Construction | Anodized aluminum with steel screws |
|---|---|
| Pane Construction | Painted white aluminum finish on one side, galvanized steel on the other side, closed cell foam core interior |
| Min/Max Height | 80" - 123" |
| Dimensions | Frame: 80"-123"L x 60" W x 2"D, Door: 80"L x 54" W x 2"D |
