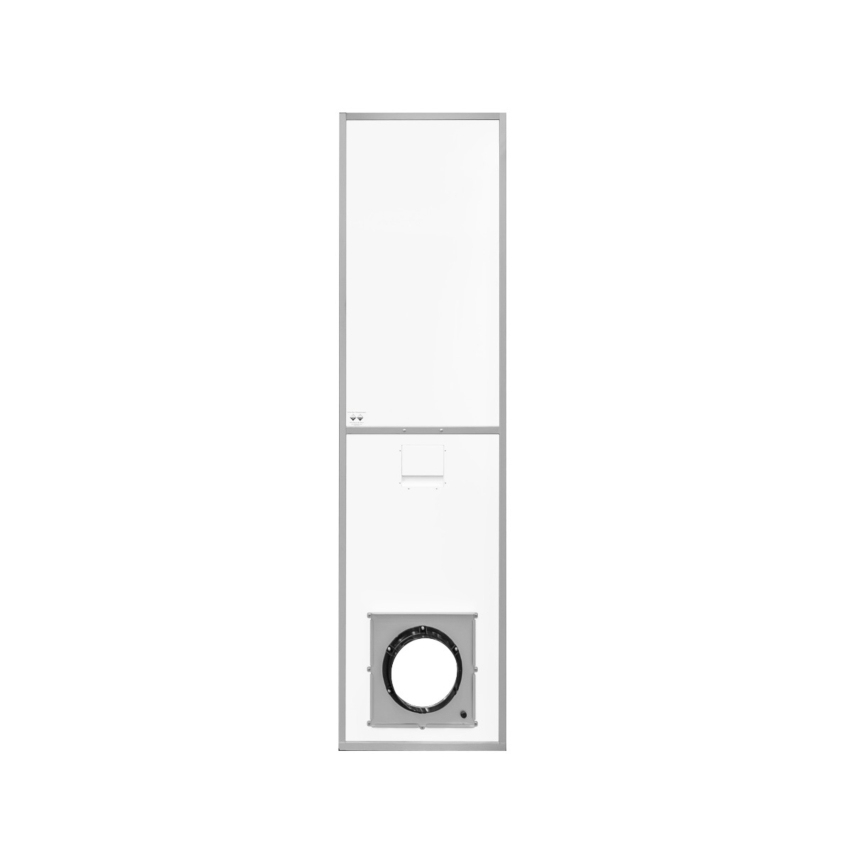

SHIELD WALL™ CORE 24” Standard Panel with Exhaust Plate and Pass-Through

  • 24” wide

  • Hinged cover conceals a gasketed opening to allow tubing connection to a differential pressure monitor

  • Pre-installed standard exhaust plate

  • Tool free height adjustment from 7ft to 10ft 3in

  • Constructed of aluminum and galvanised steel with a closed-cell foam core interior

  • Enhanced sound attenuation

  • Quick installation

Download Product Information

Email
In stock
SKU
SW-CORE-EP24
Product TypeProduct ApplicationCritical Environment Protection

SHIELD WALL™ CORE modular containment system standard 24” wide panel features a pass-through design with a gasketed opening to allow tubing connection to a differential pressure monitor system (PPM3-S or PPM4). Panel is equipped with a pre-installed exhaust plate in the bottom section. This plate can be replaced with one of four sizes of optional drop-in exhaust ports with 8”,10”, 12”, and 14" collars (not included).

 U.S. Patent No. 10,329,760

Canadian Patent Pending

More Information
Frame Construction Anodized aluminum with steel screws
Pane Construction Painted white aluminum finish on one side, galvanized steel on the other side, closed cell foam core interior
Min/Max Height 84" - 123"
Dimensions 84"L x 24" W x 2" D
