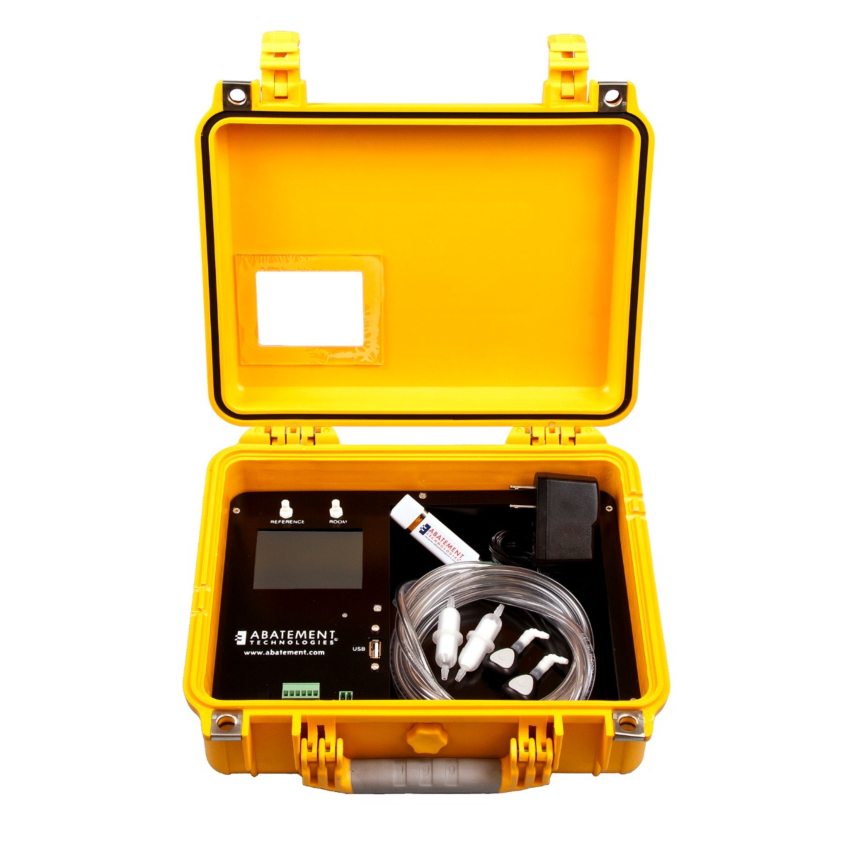

main product photo

PPM3-S Portable Differential Pressure Monitor ( Manometer )

  • Rugged Digital Manometer
  • Ultra-tough case with clear view window
  • Color touch screen display
  • USB port for on-site firmware upgrades and archive history downloading
  • Built-in visual and audio alarms
  • Up to 12 hours of operation in battery mode
  • Differential pressure range: -25Pa (-0.1”) to +25Pa (+0.1”)
  • Archived history logs are easily downloaded in CSV format to a USB flash drive; CSV format can be easily reviewed in a text editing or spreadsheet program

Download Product Information

Email
In stock
SKU
PPM3-S
Monitors, Meters and InstrumentsDifferential Pressure MonitorsAbatement & Remediation
The PPM3-S Portable Room Pressure Monitor from Abatement Technologies® is an essential tool for measuring the real-time pressure differential between two adjacent areas within a facility. Its primary health care uses are indoor construction and renovation projects and surge capacity infectious patient isolation. The intuitive technology of the PPM3-S Portable Differential Pressure Monitor makes it effective, accurate and easy to use. The key feature of the PPM3-S Portable Pressure Monitor is its capacity to record and store a large number of interval pressure checks, alarm history and setting changes in a history log that can be viewed on the screen or easily downloaded in CSV format to an external USB flash drive.



More Information
Dimensions (L x W x H) 12”L x 10”W x 5”H (30.48cm x 25.4cm x 12.7cm)
Max Power Consumption 150mA at max display brightness, 300uA in Battery Mode
Pressure_Units_Displayed Inches of water column (inWC), Pascal (Pa)
Burst Ports adaptable with 1/8” (3mm) ID silicone tubing
Range of Measurement (+ / -) 0.10inWC, (+ / -) 25Pa
Accuracy of Measurement (+ / -) 3% Full Scale
Display 3.5” 262K color TFT display, 320 x 240 resolution
Alarms Custom alarm set points from -0.1000inWC (-24.884Pa) to 0.1000inWC (24.884Pa) at a resolution of 0.0001inWC (0.025Pa)
Net Weight 5 lbs (11.02kg) including case, Battery Charger and hose
Pressure Ports 0.194” (1.5mm) quick connect fitting (quick connects supplied with two barbs for 1/8” (3mm) ID tubing)
USB Port 9,000 feet maximum
Data Storage Capacity Data transmitted in CSV file via USB flash drive can be imported into any text based editor or spreadsheet program
Storage Temperature -22°F - 176°F (-30°C - 80°C)
Data Type USB V1.0 type A for connecting USB flash drive or thermal printer
Operating Altitude 0% - 85% relative humidity (non-condensing)
Pinless Moisture >12000 logged events in non-volatile memory (no power or battery required)
Pinless_Moisture_Depth_Max Powered by lithium polymer battery that provides one year of clock operation when AC power is not present. Maintaining the charge in the battery insures that the time will not be lost.
Internal Clock 4MB
Display Resolution 0.0001inWC, 0.025Pa
Battery Life 6 V DC @ 1.0 A Input range of 100-240 VAC, 50-60 HZ
Inline Filter up to 12 hours in AC Power Mode*
Job Numbers up to 6 months in Battery Mode
Door Opening Date and time are shown with a logged event. Events are: alarm condition with current pressure, system startup, alarm reset, configuration change, low battery, archive erased, calibration, start “Battery Mode”, start “ON Mode”, start “OFF Mode”, pressure interval, and next day.
Sleeve and Top Cover Material 256 available ranging from 0 to 255
PAS750 Dimensions 10 micron Polypro HDPE inline filter with 1/8” (3mm) barbed ends
Charging Time 3.7 V, 2AH capacity; Lithium Polymer; recharges in 5 hours
