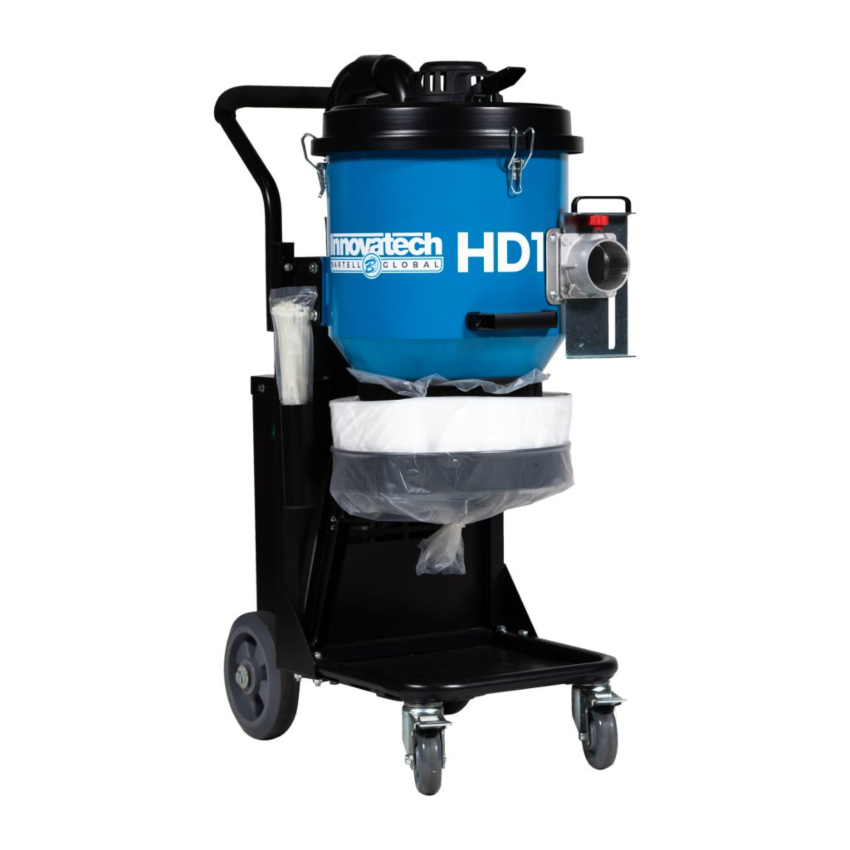

Bartell Global Innovatech branded Two-Stage Dust Collector. The HD1 is a one-motor HEPA dust extractor that features a two-stage filtering system comprised of a main conical filter and a HEPA filter. A “Reverse-air” jet-pulse filter cleaning system – effectively cleans and removes dust build-up on the filters. With an easy to use “Inlet closure door” it eliminates the need to remove hoses when pulsing and cleaning filters. Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding. The B-HD1 is equipped with a “Continuous Bag” disposal system for effective dust collecting.
| Dimensions (L x W x H) | 24.7" x 16.5" x 40.2" |
|---|---|
| Airflow | 120 cfm |
| Stage 1 pre-filter | 16 ft2, 99.5% @1.0um |
| HEPA Filter | 13 ft2, 99.99% @0.3um |
| Amperage | 8 A |
| Voltage | 120 V |
| Power | 1.6 hp |
| Net Weight | 88 lb |
| Waterlift | 100" |
| Inlet | 50 mm |
